Obtaining Access Token

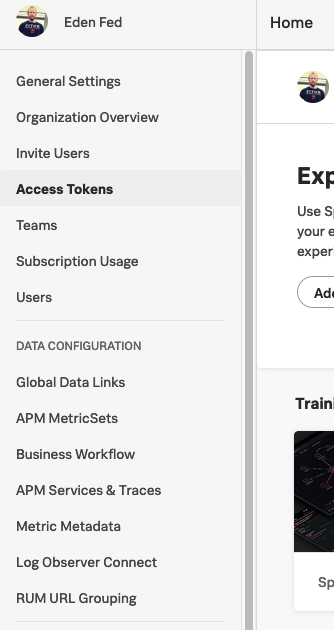

Go to Settings then Access Tokens. and click Create New Token

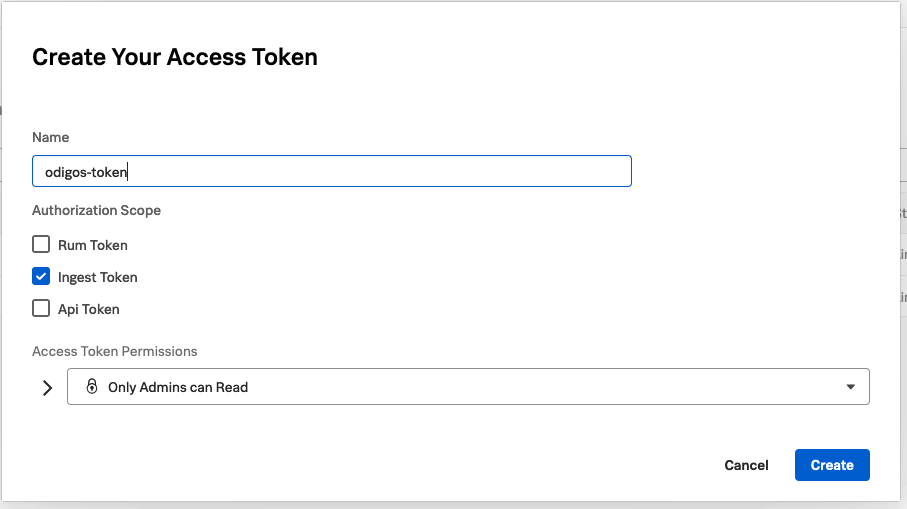

Give the token a name and select Ingest Token for the authorization scope and click create.

​
Configuring the Splunk Backend

Enter the following account details in Odigos UI:

  • Name: Choose a name for this backend (e.g. Splunk)
  • Realm - The Splunk ream in use. This is the second part of the URL you use to access Splunk/SignalFX. For example, if you access Splunk at https://app.us1.signalfx.com, then the realm is us1.
  • Access Token: The access token you created in the previous step.

​
Adding a Destination to Odigos

Odigos makes it simple to add and configure destinations, allowing you to select the specific signals [traces/logs/metrics] that you want to send to each destination. There are two primary methods for configuring destinations in Odigos:

  1. Using the UI
    To add a destination via the UI, follow these steps:
    • Use the Odigos CLI to access the UI: Odigos UI
    odigos ui

  • In the left sidebar, navigate to the Destination page.

  • Click Add New Destination

  • Select Splunk and follow the on-screen instructions.

  1. Using kubernetes manifests

Save the YAML below to a file (e.g., destination.yaml) and apply it using kubectl:

kubectl apply -f destination.yaml

apiVersion: odigos.io/v1alpha1
kind: Destination
metadata:
  name: splunk-example
  namespace: odigos-system
spec:
  data:
    SPLUNK_REALM: <Realm>
  destinationName: splunk
  secretRef:
    name: splunk-secret
  signals:
  - TRACES
  type: splunk

---
apiVersion: v1
data:
  SPLUNK_ACCESS_TOKEN: <base64 Access Token>
kind: Secret
metadata:
  name: splunk-secret
  namespace: odigos-system
type: Opaque
